03 An Introduction to the ArchiMate® Language
3.1 Core Elements

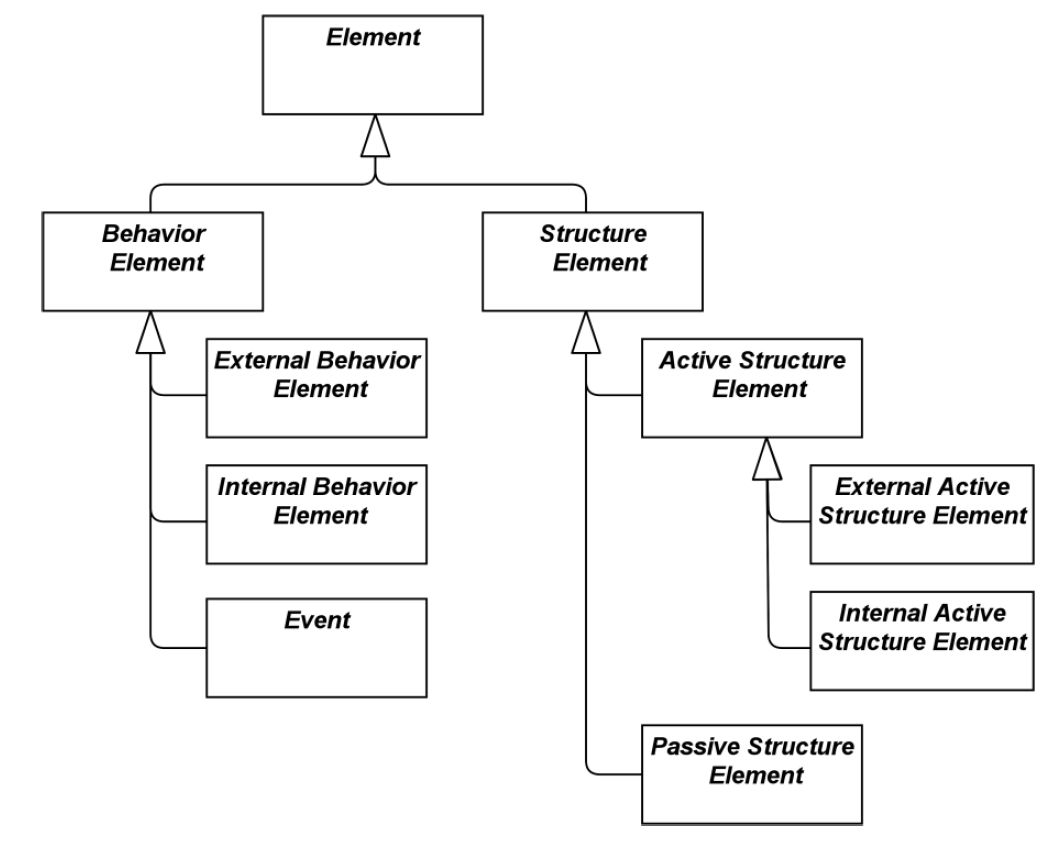

The ArchiMate core elements belong to one of 3 categories (think about them from one graph / triple aspect):
- Active Structure Elements (Subject)
- Behavior Elements (Predicate)
- Passive Structure Elements (Object)
Support service-oriented viewpoints:
- Enternal Behavior Elements (Services)
- Internal Behavior Elements (Processes & Functions)
- External Active Structure Elements (Interfaces)
- Internal Active Structure Elements (Actors, Roles, Applications, Devices)

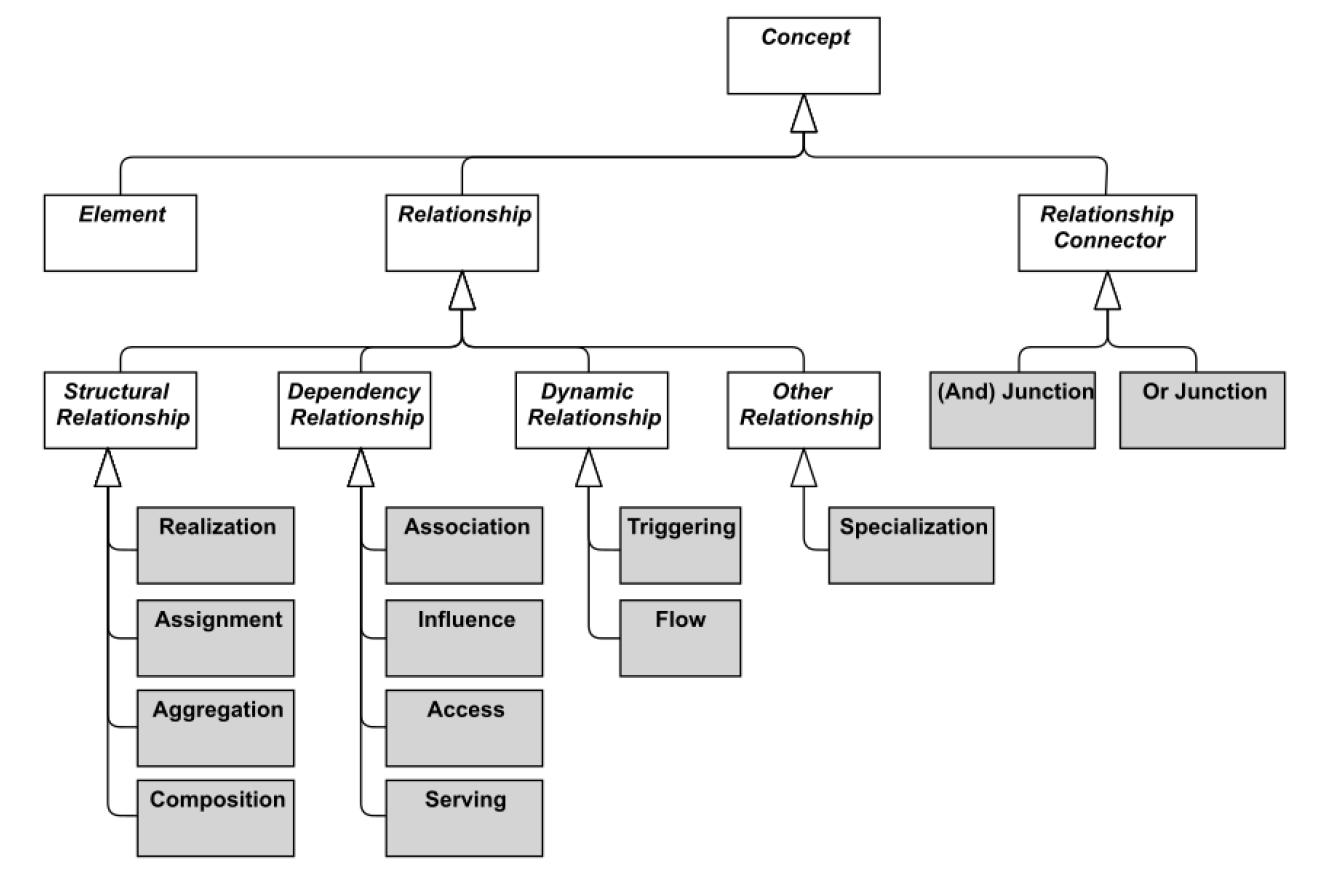

3.2 Core Relationships
Four relationships categories:
| Category | Purpose | Relationships |
|---|---|---|
| Structural | Model the static construction or composition of elements | composition, aggregation, realization, assignment |
| Dependency | How elements support each other | serving, access, influence, association |
| Dynamic | Model information and control flows between elements | triggering, flow |
| Specialization | others | specializing |
The language does not allow elements and relationships to be combined arbitrarily (任意地).
3.3 Extension Layers and Elements
- Strategy Layer (change to “Layer” from 3.2): Resource, Capability, Course of Action, Value Stream
- Motivation Elements: Stakeholder, Driver, Assessment, Goal, Outcome, Principle, Requirement, Constraint, Meaning, Value
- Implementation and Migration Layer: Work Package, Deliverable, Implementation Event, Plateau, Gap
- Composition Elements: Location, Grouping
3.4 ArchiMate Language Customization
- ArchiMate Model File: ArchiMate_SABSA_Figure02.archimate

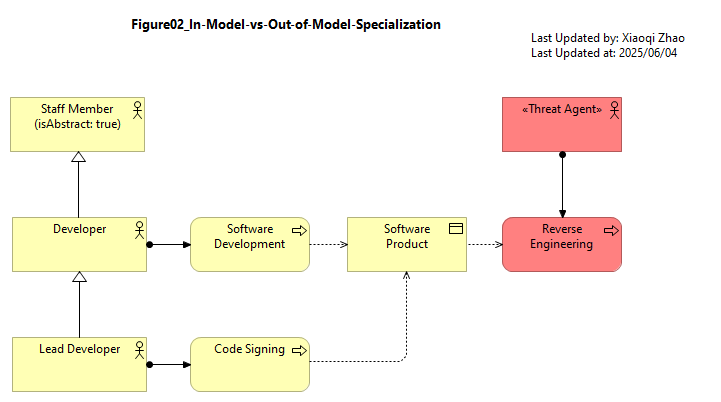

- ArchiMate Exported Image: Figure02_In-Model-vs-Out-of-Model-Specialization.png
3.4.1 User-Defined Attributes
link to ArchiMate Specification 14.1 “Adding Attributes to ArchiMate Concepts”
- Both the ArchiMate Specification and the Model Exchange File Format support basic property types: string, integer, real, boolean, currency, date, time, URL, etc.
- In order to support compound properties, the Security Overlay occasionally uses text strings in JavaScript™ Object Notation (JSON) format
3.4.2 Sepcialization and “Stereotypes” – IMPORTANT
- “In-Model” specialization uses the specoialization relationship introducted in 3.2.1 to show that one element is a particular kind of another (i.e. a subtype)
- “Out-of-Model” specialization is denoted by double chevrons in a type-qualified name (resembinling a UML stereotype: « »)
- “Staff Member” is modeled using Specialization relation
- “Threat Agent” is modeled using «stereotype» notation, emphasizing that it is somewhat untypical of “a buisness entity of performing behavior”, it is not derived from another Actor via inheritance.
- “isAbstract” property is denoted by Security Overlay with its name in Italics, which is another UML convention.
3.4.3 Overloaded Relationships
The ArchiMate language uses relationship overloading: the same symbol represents different but semantically compatible concepts in different context.
Overloading trades minimization of the vocabulary for a minor loss of precision.
The Security Overlay will further overload relationships in keeping with this general principles.

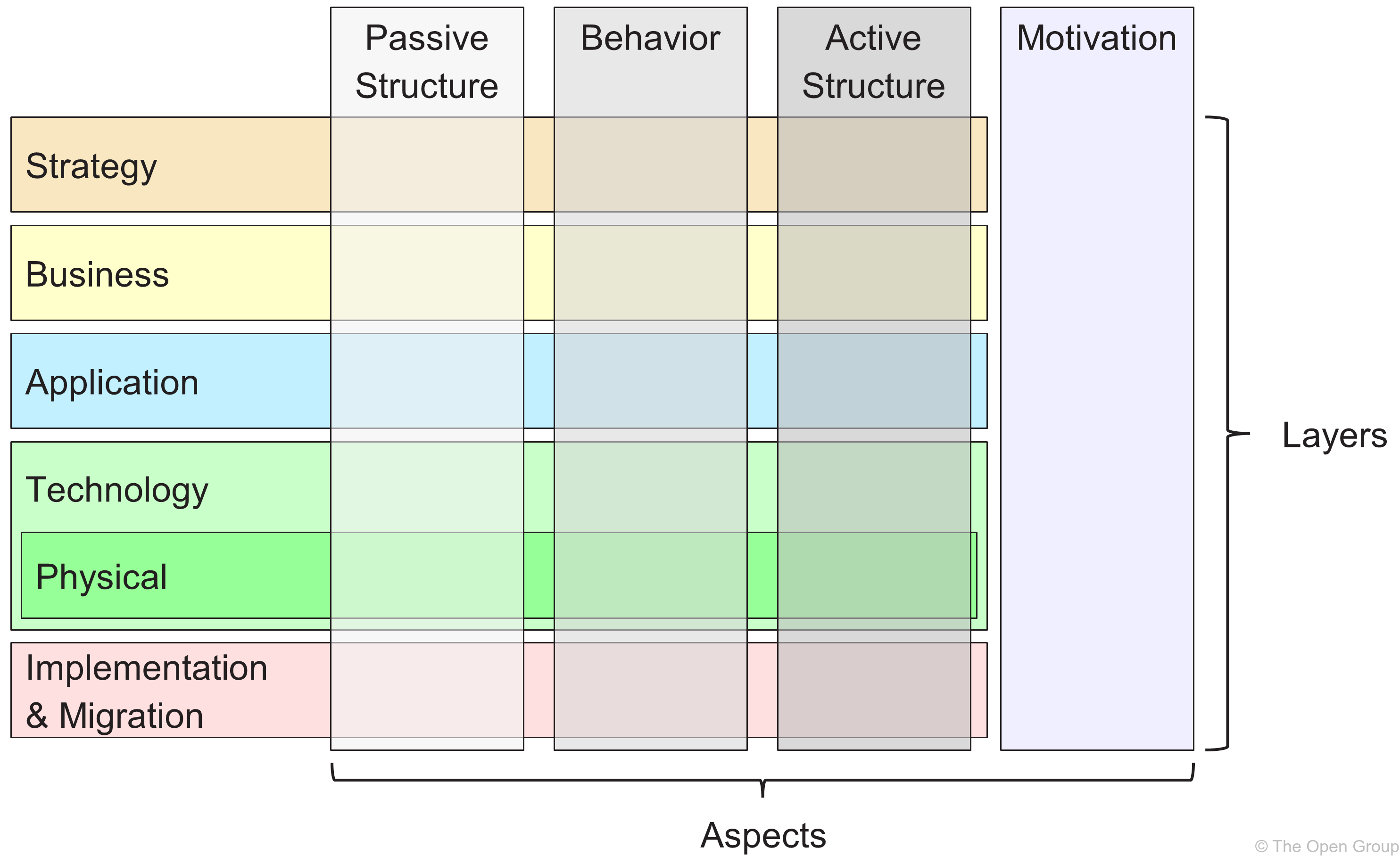

3.5 The ArchiMate Full Framework
You already see this in Chapter 1: Introduction:

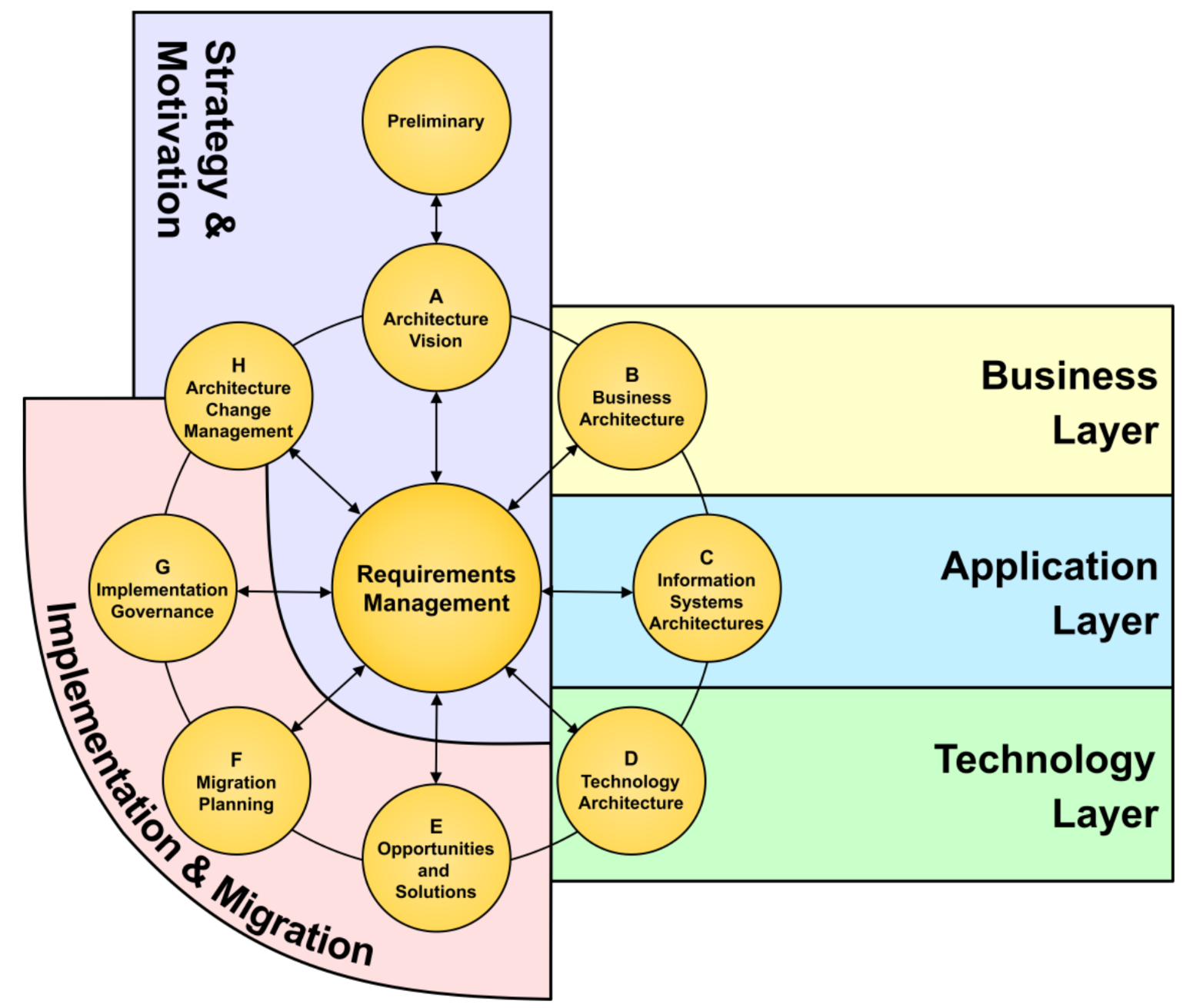

Then below is the mapping of the ArchiMate Specification to the TOGAF Architecture Development Method (ADM):
Some Learning Sources about ArchiMate
- ArchiMate Modeling Case Study - ArchiSurance
- ArchiMate Modeling Case Study - ArchiMetal
Joint ArchiMate with Ontology in Modeling:
- Udemy - Master ArchiMate 3.2 Specification - Ontology and Modeling
- YouTube video list - Build Ontology View on ArchiMate 3.2 Language Meta-Model
Welcome to have your support to my packaged course, well you may also view a series of those videos in YouTube as I’d like that can be shared more.
About ArchiMate License and Trademark
Look at this post: https://ea.rna.nl/2016/05/23/is-archimate-an-open-standard-not-really/comment-page-1/ (Also I put PDF version extracted)
Any comments are welcome, feel free to raise pull-request or post in Discussion Board
