08 Modeling the Logical Security Architecture
- 08 Modeling the Logical Security Architecture
8.0 Logical Overview
The Logical Architecture documents the Solution Architect’s view of the system.
In this section:
- Conceptual elements described in the previous section are applied to and guide the Application and Data Architecture
- It also proposes security properties for the ArchiMate Specification’s Logical layer elements that support security analysis.

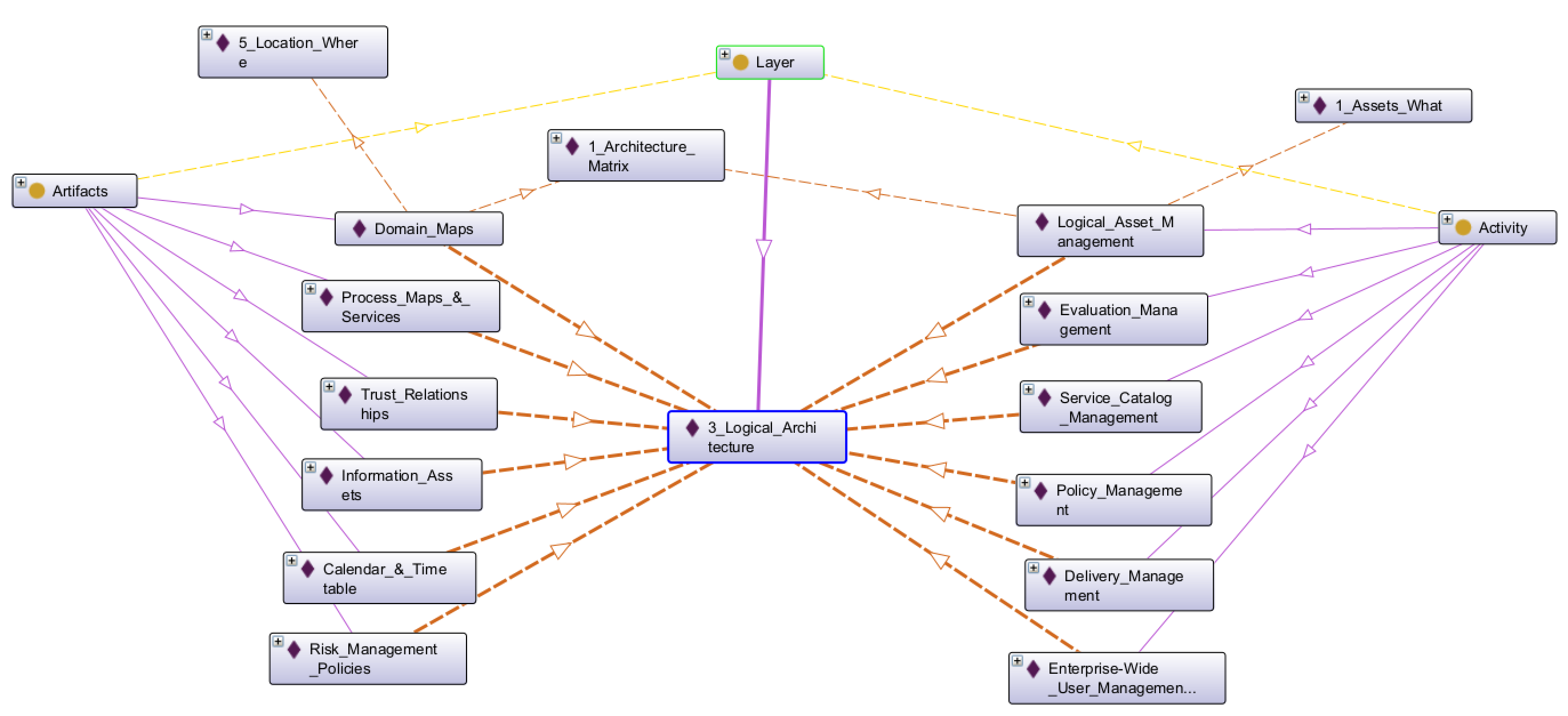

Below we’re again using Protege to expand our SABSA Matrix Ontology:
Snapshot Protege Ontology File: SABSA Matrics 2018 - Ch08
Below Figure 54 outlines the set of artifacts and activities of the Logical Architecture:
Snapshot ArchiMate Model: Figure 54: Developing the SABSA Logical Security Architecture
8.1 Information Assets
The principal information assets in this layer are software assets (applications) and data.
8.1.1 Application Components
Most organizations maintain a register of the applications deployed in their IT environment (it can be called Application Portfolio, or Application Catalog). The primary drivers for this register are operational: patch management, vendor support, license management, etc. Because these concerns are focused on software products rather than logical building blocks, discussion is deferred to Chapter 9.
The kind of inventory relevant at this layer is the identification of critical applications: the software upon which the organization is disproportionately reliant for achieving its primary mission.
Organizations perform a regular “Critical Application Review” to identify these dependencies. Applications on the critical list are then prioritized for risk assessment, penetration testing, monitoring, business continuity planning, audit, etc.
The most common approach to identify critical applications is simply to request a rating recertification from the Application Owner.
This approach has a few issues as of below:
- In a Service-Oriented Architecture (SOA), the use of application services can be hightly dynamic.
- A tendency for subjective bias

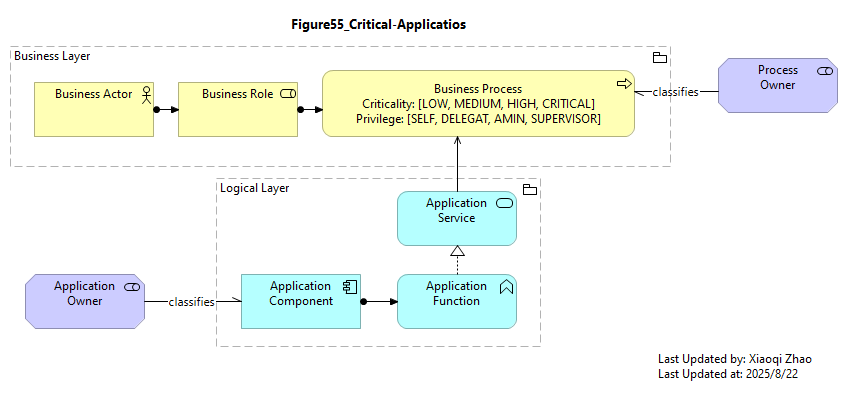

Below Figure 55 shows a better solution using architectural models:
Snapshot ArchiMate Model: Figure 55: Critical Applications

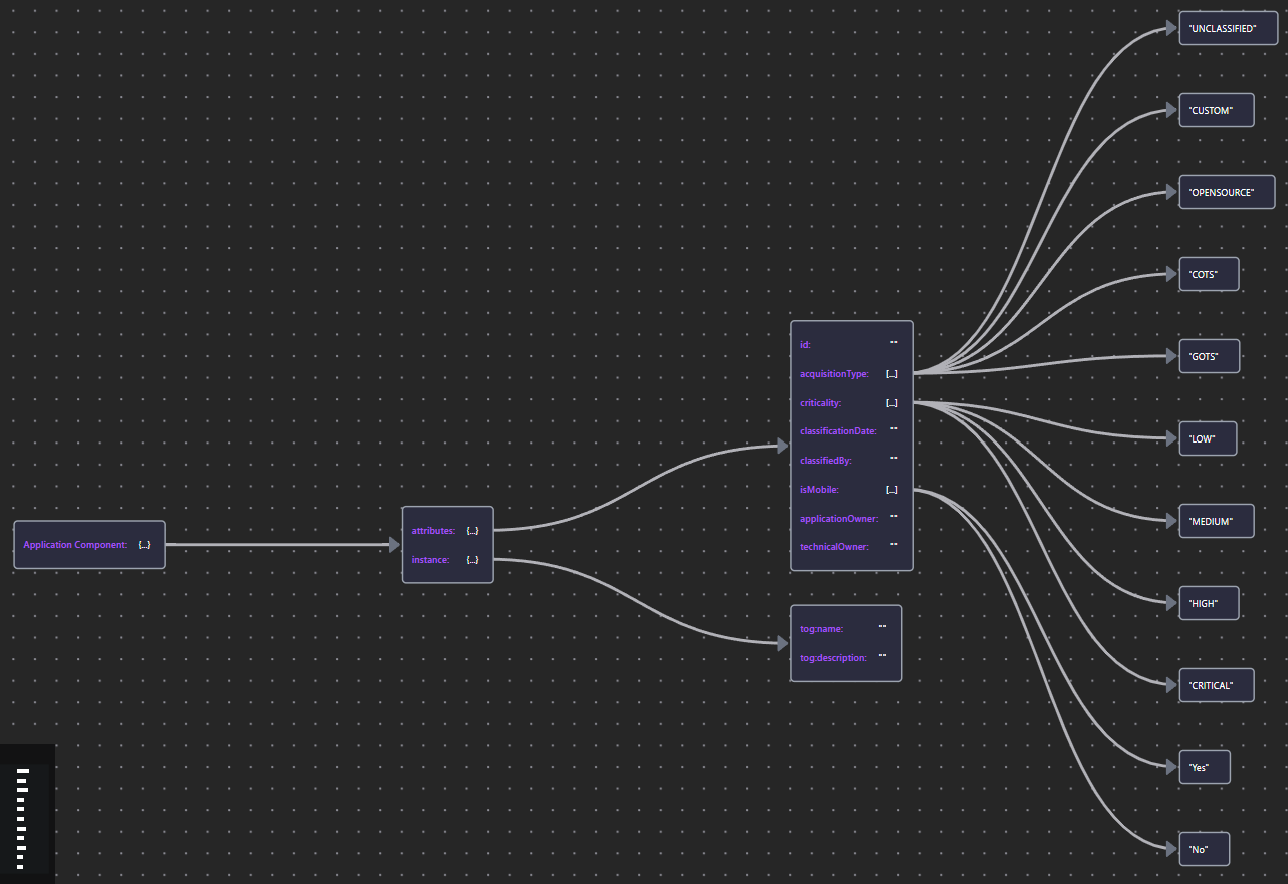

Here is the Application Component Properties:
| Element | Schema File | Schema Visualization |
|---|---|---|
| Application Component | App Comp JSON |  |
8.1.2 Security Configuration
«Security Configuration» is a Stereotype of Data Object tht declares any configuration settings that differ from the baseline (least common functionality) configuration.
It is appropriate at the Logical layer because different instances of the same building blocks may have different configurations in different contexts.
Properties match those of the baseline configuration but with values toggled between ENABLED and DISABLED.
| Element | Schema File | Schema Visualization |
|---|---|---|

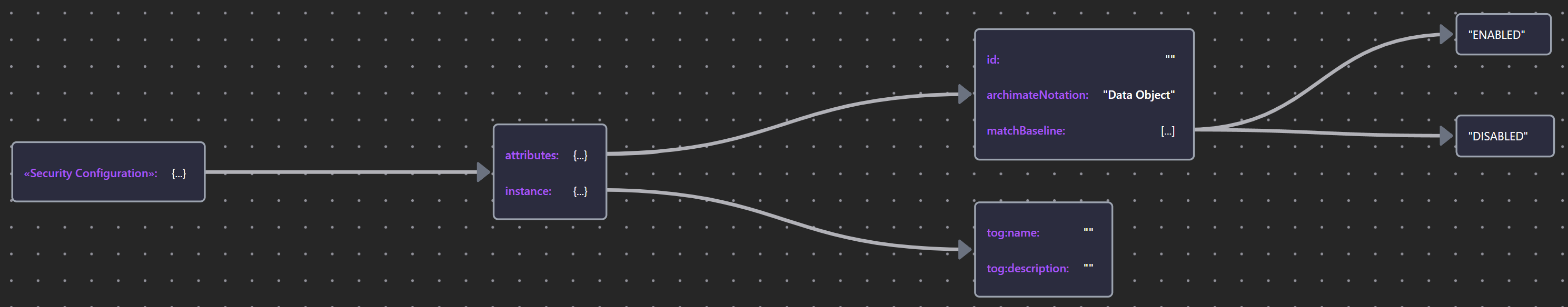

| «Security Configuration» | Sec. Conf. JSON |  |
8.1.3 Software Defects and Malware
Being modeled as a «Vulnerability» (Motivation layer elements can be placed anywhere), it is often useful to associate functional defects with application behavior elements directly.

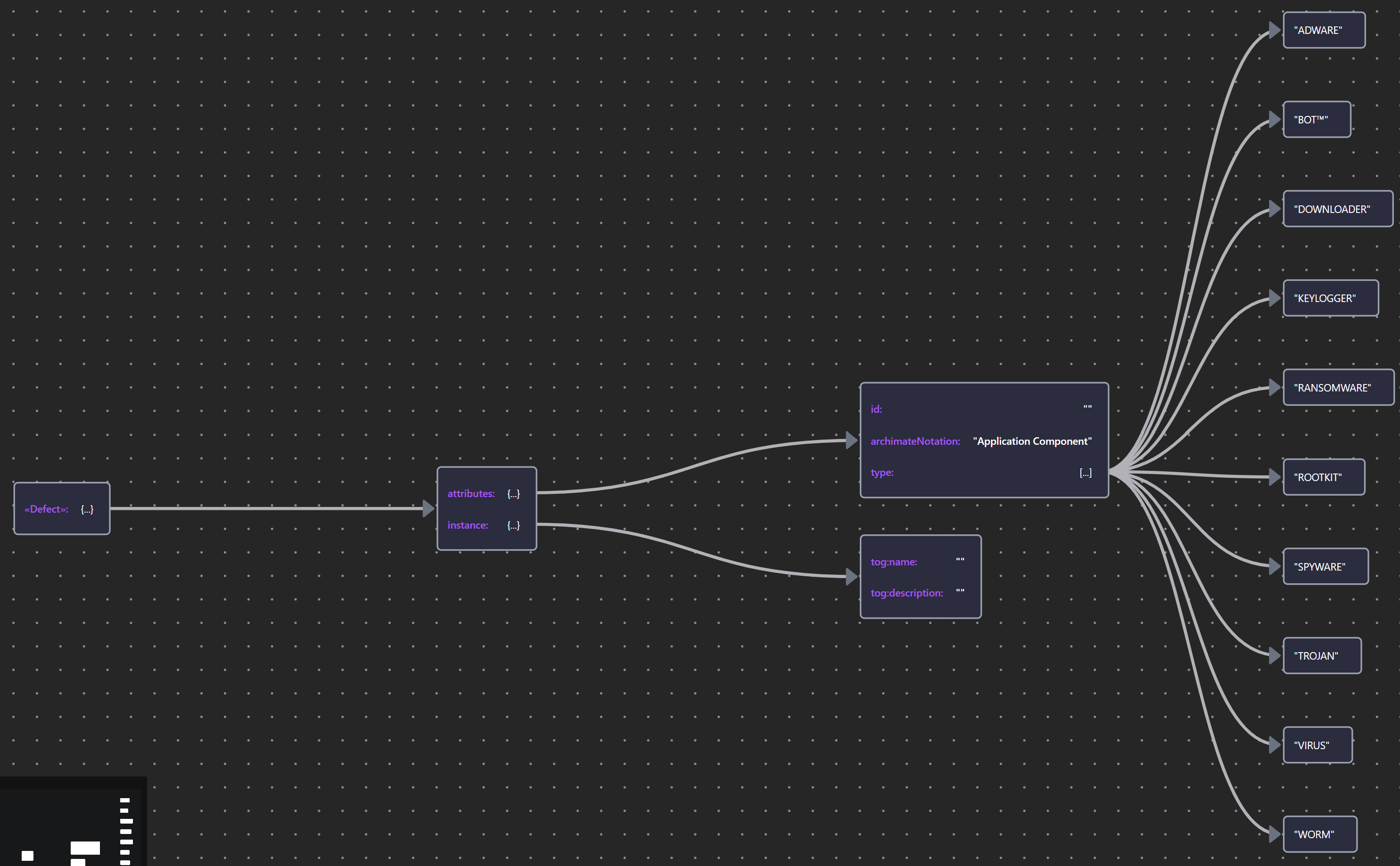

The Security Overlay includes a Malware stereotype of Application Component that can represent non-human agents or malware threat. it provides a type property that enumerates a controlled vocabulary of threat types with a default set of values drawn from the STIX™ (Structured Threat Information Expression) taxonomy.
Some reference on STIX, which ia a language and serialization format used to exchange cyber threat intelligence (CTI):
-
[About STIX STIX Project Documentation](https://stixproject.github.io/about/) - Introduction to STIX - GitHub Pages
- STIX Version 2.1
-
[Schema STIX Wiki](https://stix.wiki/docs/schema/) - STIX/TAXII for Cybersecurity Threat Intelligence
| Element | Schema File | Schema Visualization |
|---|---|---|

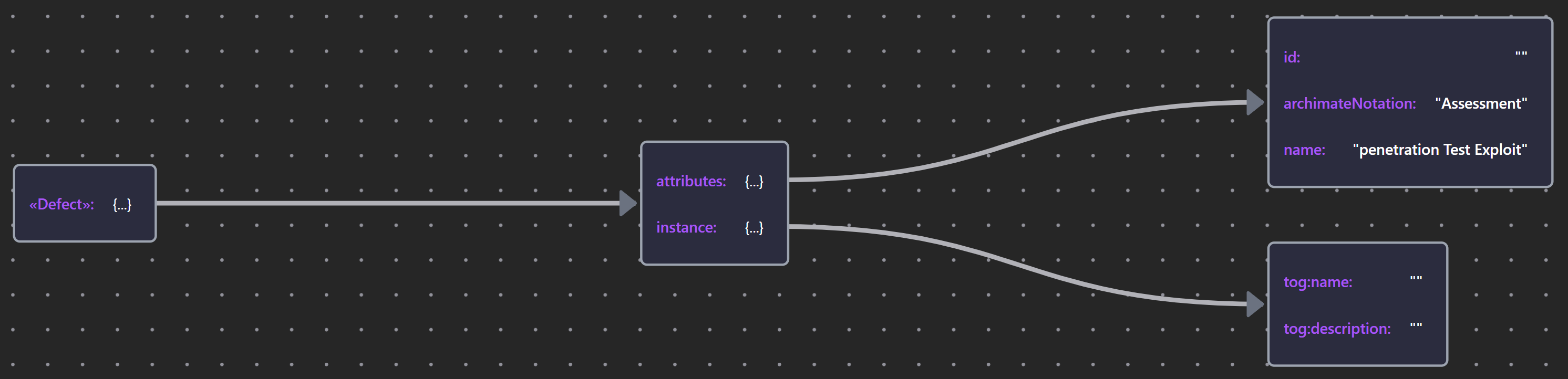

| «Defect» | Defect JSON |  |
| «Malware» | Malware JSON |  |
8.1.4 Data Assets
A means of tracking critical data assets is a prerequisite for their effective protection. When those assets are subject to regulation, as is the case with personal or medical data, it is also mandated by compliance.
Modeling provides a means to bind data objects to their business significance and show its provenance (where it comes from), how it is processed (by which application functions having what read/write/modify capability), where it goes (flow relationships, sometimes traversing domain boundaries), and who has access to it (the business actiors and roles to whom it is served).
The security properties that enable a Data Object to contribute to the protection of information include the ability to implement data-level controls for confidentiality, privacy and integrity, using various techniques of encryption, anonymization (tokenization, redaction) and integrity protection (checksum, HMAC, signature).

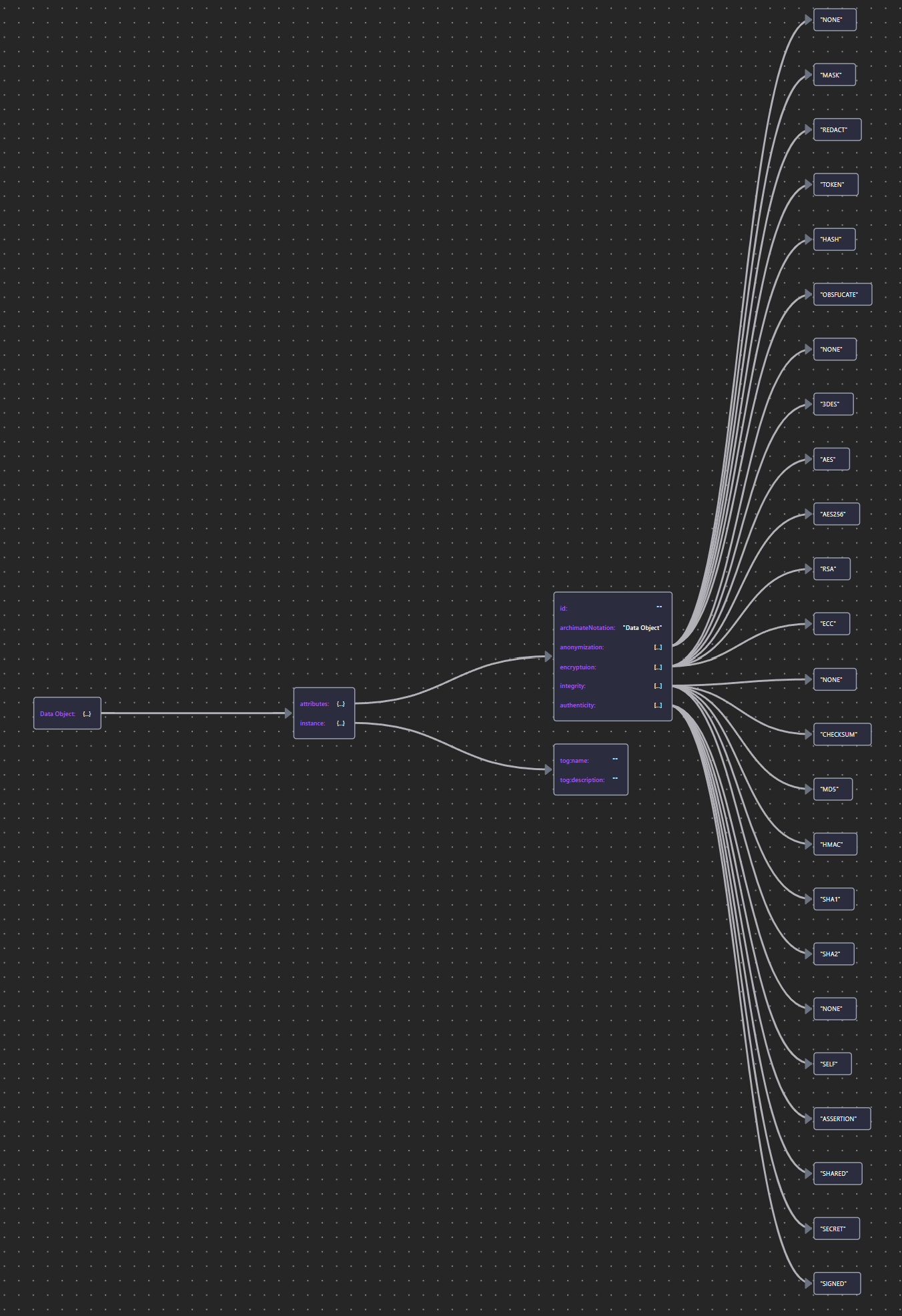

| Element | Schema File | Schema Visualization |
|---|---|---|
| Data Object | Data Object JSON |  |
8.2 Risk Modeling
8.2.1 Risk Modeling
Section 4.3-risk–security-modeling-in-the-archimet-specification, 5.5-impact-threat-vulnerability-and-risk, and 7.2-risk-management–strategy described the Security Overlay’s risk elements and risk management strategy without prescriptive about any particulr methodology that an organization may choose to adopt.
These high-level definition can be adapted to suit an organization’s chosen risk methodology.
To illustrate the application of these concepts, this section models a scenario described in the Open FAIR™ Risk Analysis Example Guide, which contains both qualitative and quantitative analyses.
8.2.2 The Scenario
The example scenario considers a situation in which an HR Executive commits the security sin (安全恶习) of posting log-in credentials ona sticky note attached to their workstation. The Executive’s office is accessible to five groups of people: consituencies of differing size, goals, motivation, access opportunity, capability, and competency.

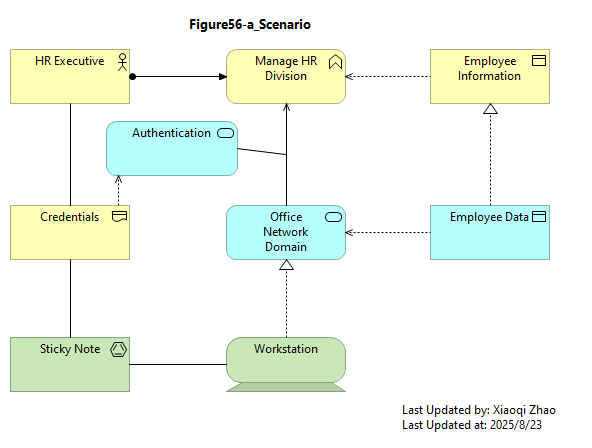

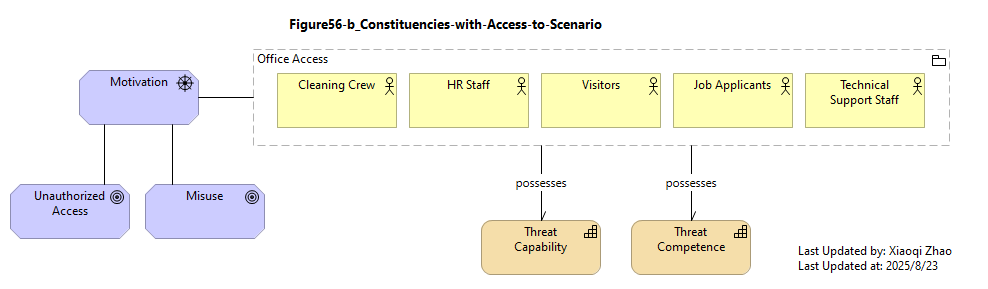

Below Figure 56 shows how this scenario might be modeled in ArchiMate language:
Snapshot ArchiMate Model: Figure 56: Open FAIR™ Example Scenario
The analysis described in the guide focuses on the risk poses by one of these groups: the Clearning Crew.

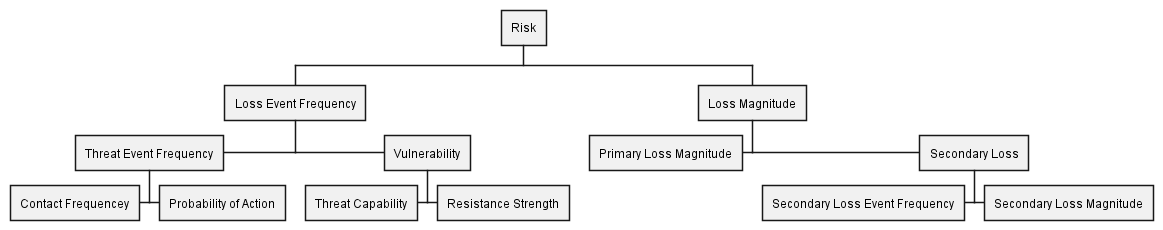

The Open FAIR™ Risk Taxonomy defines a structure, reproduced in below Figure 57 (Using PlantUML’s WBS Diagram), to analyze this risk. The assessment of any factor in the taxonomy is determined by a qualitative (risk matrix) or quantitative (mathematical) combination of its (构成的) factors.
Source Diagram File: Figure 57: The Open FAIR™ Risk Taxonomy

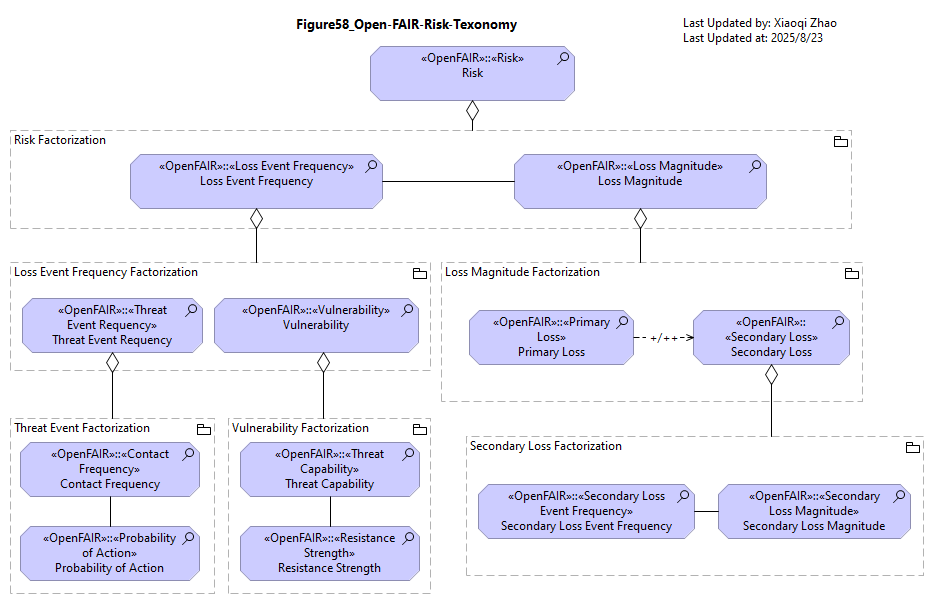

An equivalent ArchiMate representation of this model is shown in modeled in below Figure 58:
Snapshot ArchiMate Model: Figure 58: Open FAIR™ Risk Taxonomy Modeled in ArchiMate Language

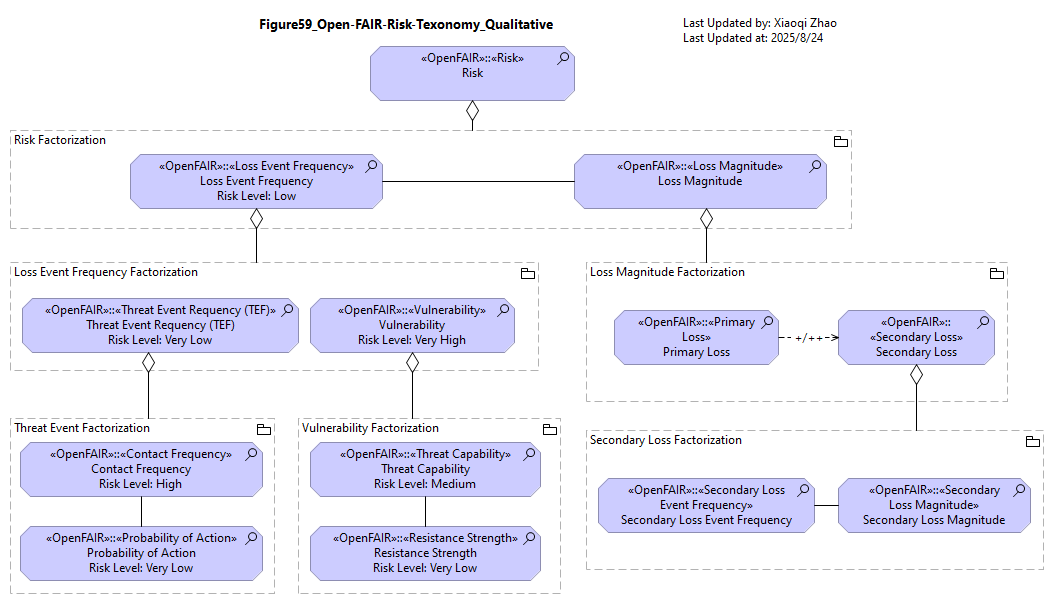

Snapshot ArchiMate Model: Figure 59: Qualitative Example from the Open FAIR™ Risk Analysis Example Guide

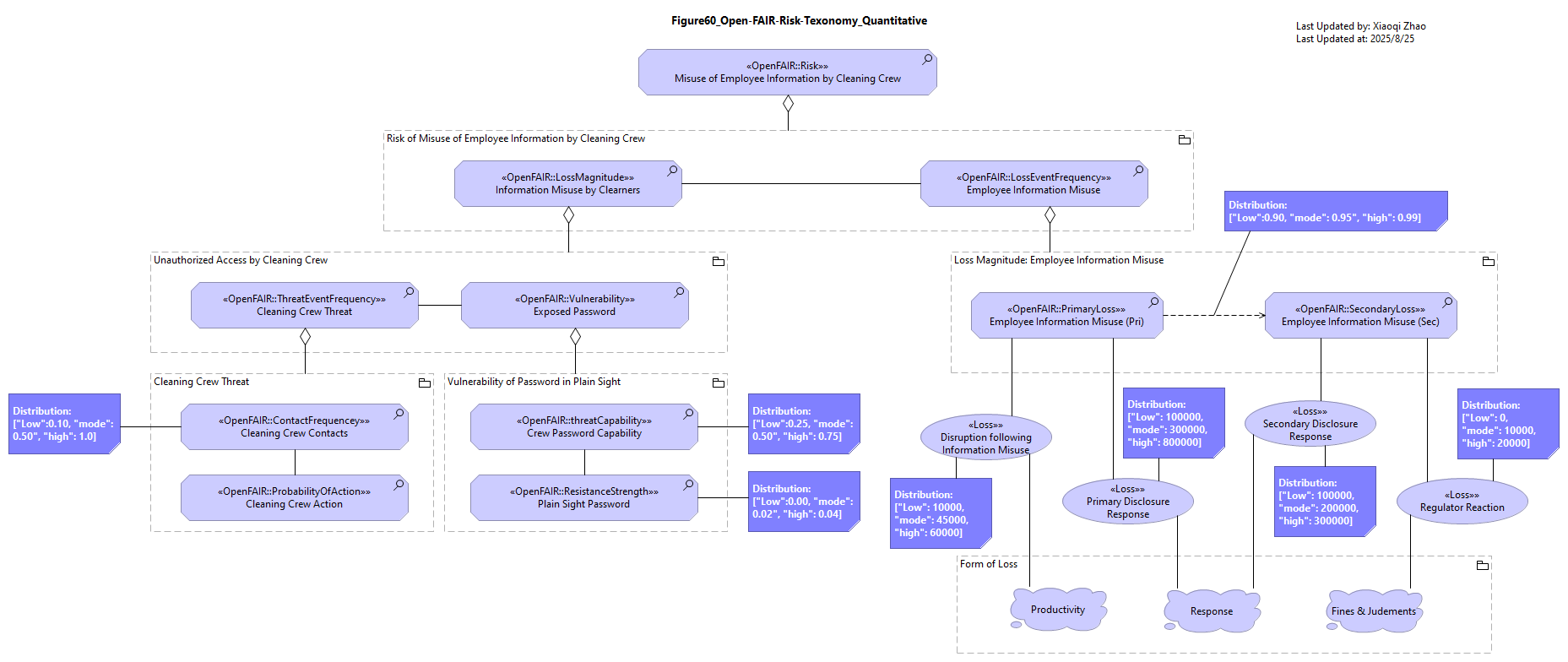

Snapshot ArchiMate Model: Figure 60: Quantitative Example from the Open FAIR™ Risk Analysis Example Guide
8.3 Application Functionality and Services
The Process cell of the SABSA Matrix Logical architecture addresses application functionality and services.
In terms of what we might call “supply-side availability”, the Security Overlay is based on a simple premise that the most important characteristic of internal behavior elements (processes, functions, and interactions) is their contribution on fulfilling the business mission. Criticality can be determined through traceability to Value Stream, or by an enumerated criticality property with qualitative range of values.
For services, it is their availability:
- human-oriented services being presented as having a service window;
- technical services by an enumerated availability ranges (e.g., HIGH = 99.99~99.999%), supported by recovery targets, the Recovery Time and Recovery Point Objectives (RTO/RPOs).
On the “demand side”, availability is also affected by the resources available to handle the rate of incoming requests.
When tracing from business layer to application layer, these factors provide information that can help determine whether Application Functions and Application Services are capable of meeting peak demand within the terms of the SLA.

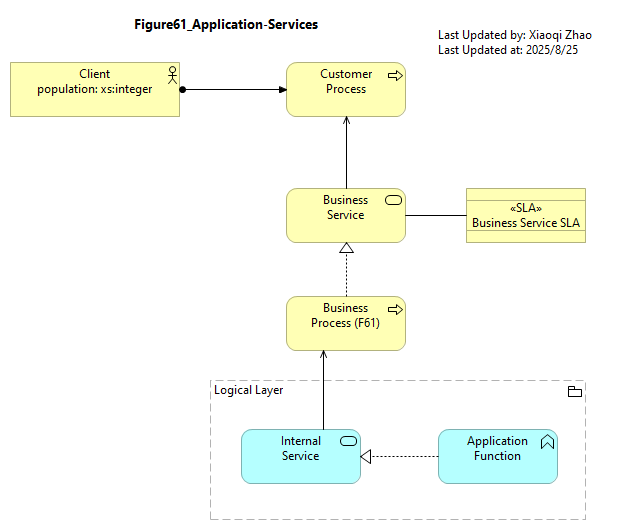

Below Figure 61 might be used to identify critical business services reliant on applications not operated in high availability configuration:
Snapshot ArchiMate Model: Figure 61: Application Services

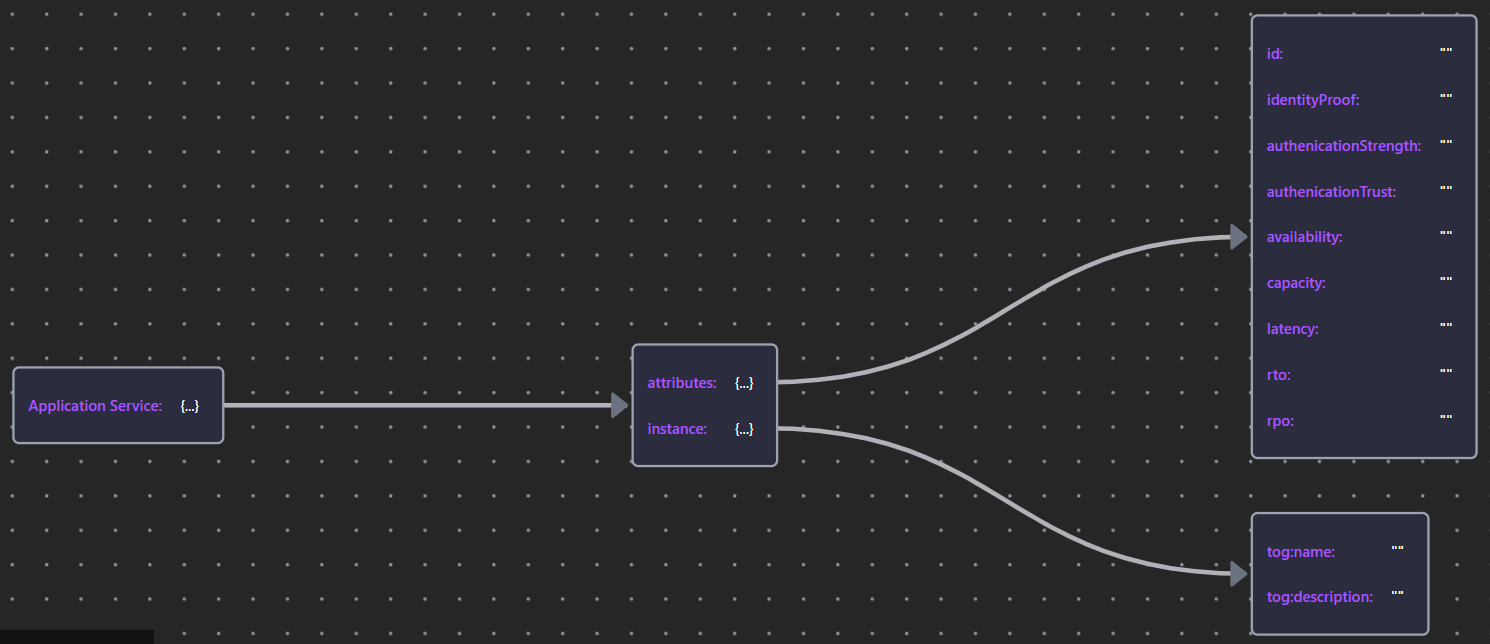

The properties of the Application Behavior elements are shown in below Table 36. Because service elements play a key role in both availability and access control, only the availability properties are explained here.
| Element | Schema File | Schema Visualization |
|---|---|---|

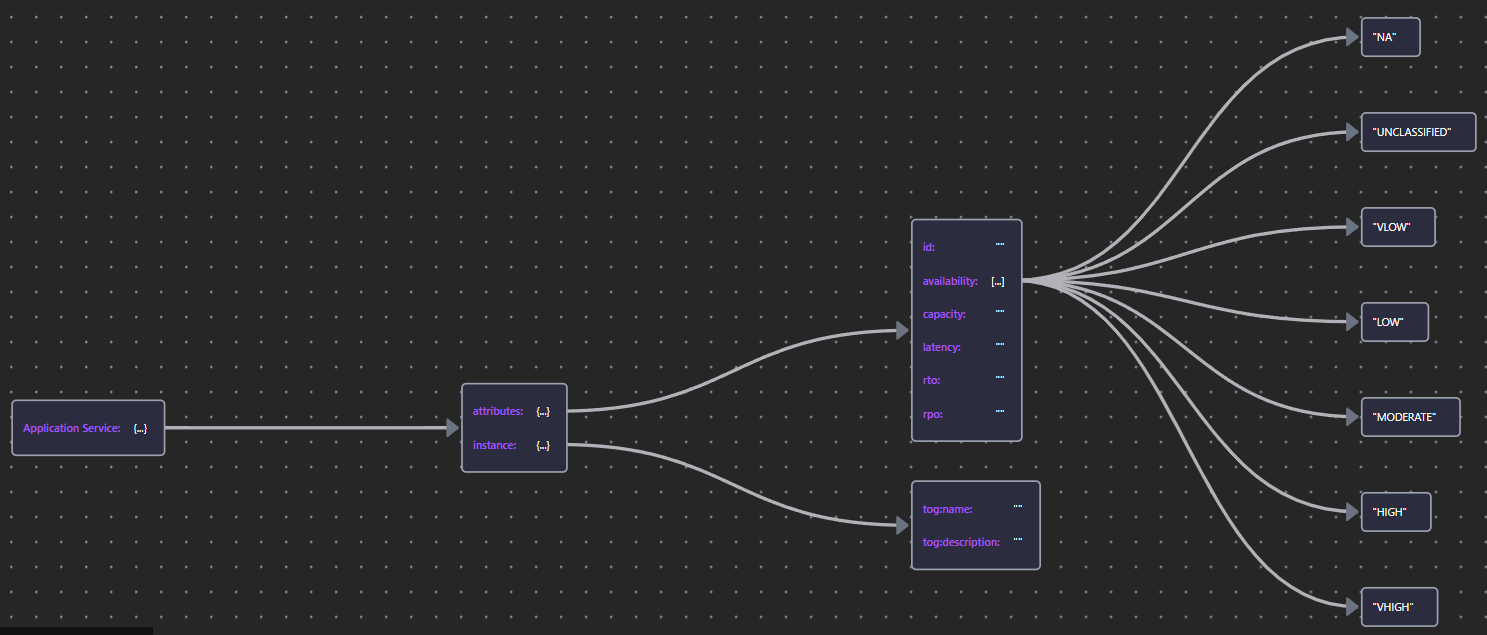

| Application Service | App Service JSON |  |

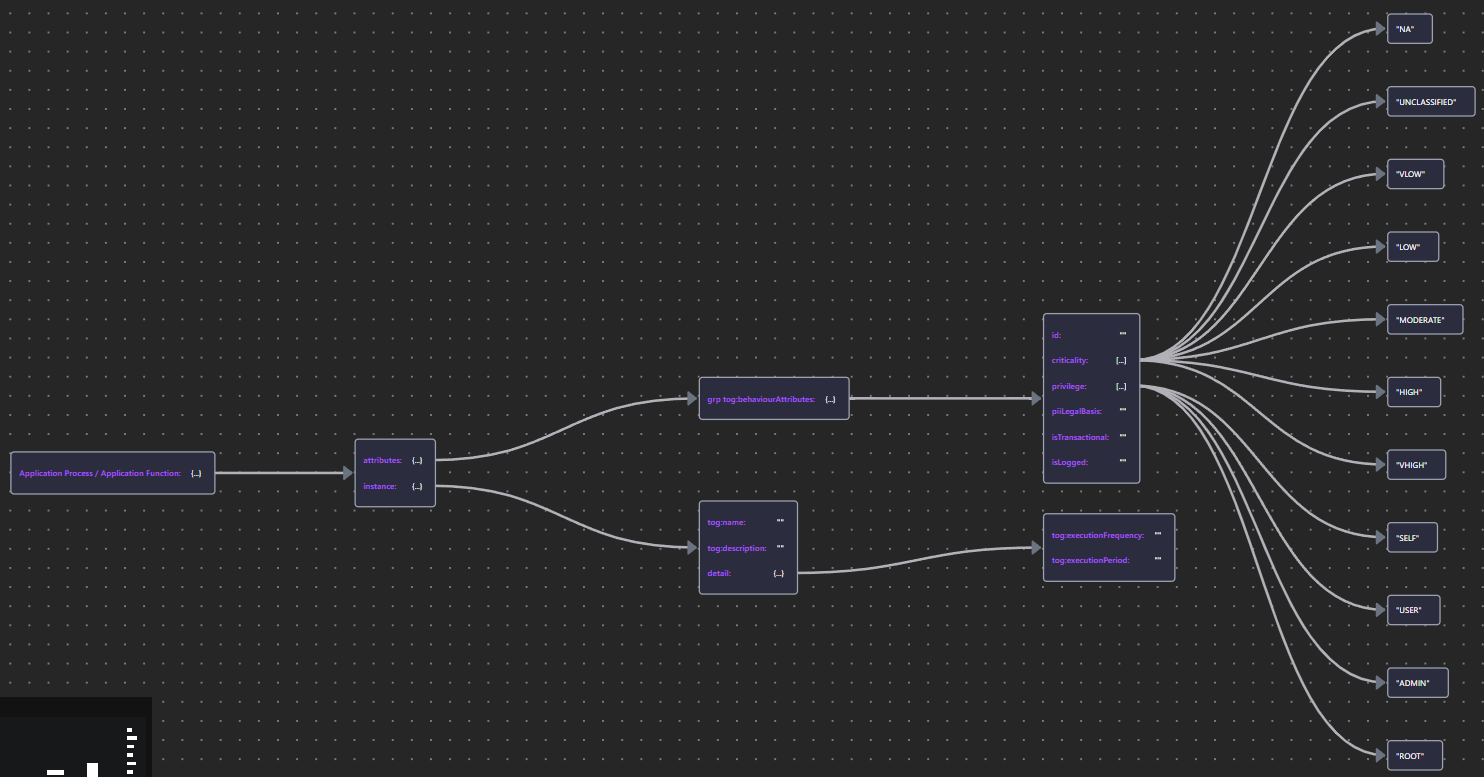

| Application Process/Function | App Process/Function JSON |  |
8.4 Logical Access Management
A key security issue for Application Services is the ability to enfource access control, predicated in turn on the Service’s ability to establish a minimum level of assurance of the digital identity presented by the user.
On the premise that on the Internet, “nobody knows you’re a dog”, the Security Overlay must be able to express that while “being a dog” might not be a concern for some low-risk services, others will demand a degree of confidence that the Principal accessing the service is a legitimate proxy of the identified, real-world Actor.
To model this, the Security Overlay proposes properties that reflect the three-level assurance criteria identified in NIST’s Digital Identity Guidelines (NIST SP 800-63-3) (local copy here: 800-63-3, 800-63-4): The default schema proposes as a 3-tier classification, STANDARD, ENHANCED, ASSURED, that maps easily to the assurance levels described in NIST, but this can be adapted to other schemas such as ISO/IEC 29115 (Entity Authentication Assurance Framework)’s 4-level schema or a proprietary scheme (e.g. numeric range), defined by the implementing organization.
Access Control is increasingly implemented via external services (policy administration, information, and decision points), but enforcement is predominatly local and predicated on the Principal having authenticated to an account that has been provisioned with a set of access rights.
Credentials generally materialize at the logical level as some form of data (e.g. a passcode, dactylogram, or retina scan) that must be compared against the credential on record. These may or may not be associated with the target system account, depending on whether authentication is performed locally or represented by a trusted token form a centralized Authentication Service, as shown in below Figure 62:

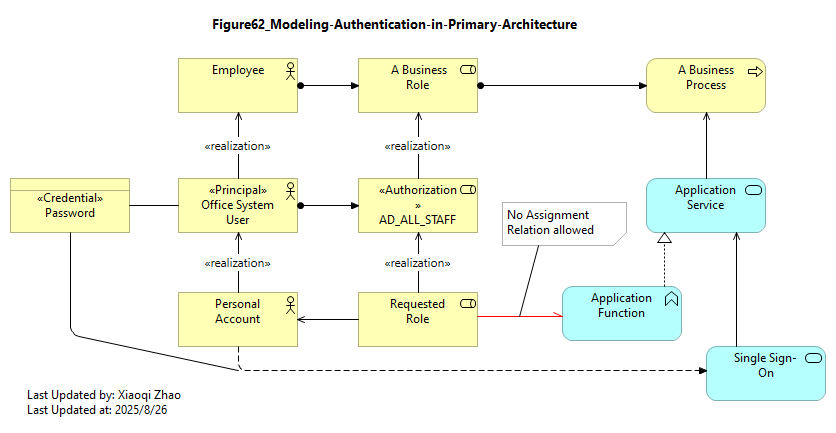

Snapshot ArchiMate Model: Figure 62: Modeling Authentication in the Primary Architecture
In above diagram, a Service Provider initiated Single
Sign-on Authentication has been modeled as an Infrastructure service (Application Service) because that is how it looks from the Application’s perspective: the paradigm of the externally-visible service redirecting an unauthenticated session to an authentication service.
The foremost reference on the good style and practical usage of the ArchiMate language advocate the structuring of models in 3 architectural planes:
- a primary archbitecture (describing run-time use)
- a secondary architecture (system development, administration, and operation)
- a tertiary architecture (ownership and governance).
While authentication is a run-time process in the primary architecture, the service is best modeled as part of a LAM capability in the secondary architecture, shown in below Figure 63:

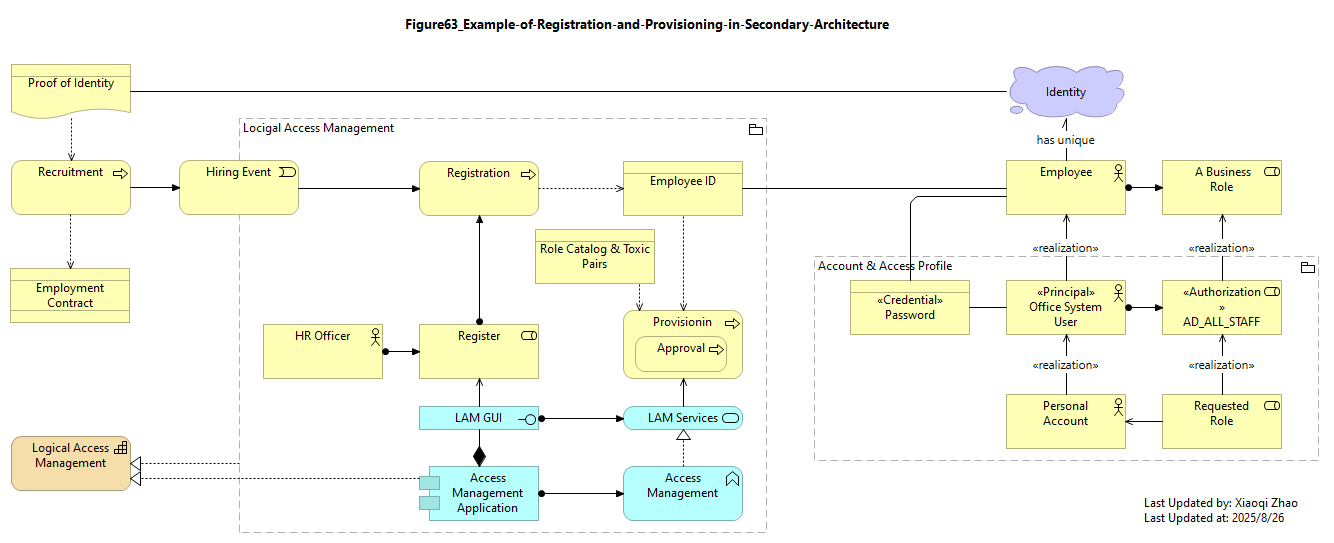

Snapshot ArchiMate Model: Figure 63: Example of Registration and Provisioning in the Secondary Architecture

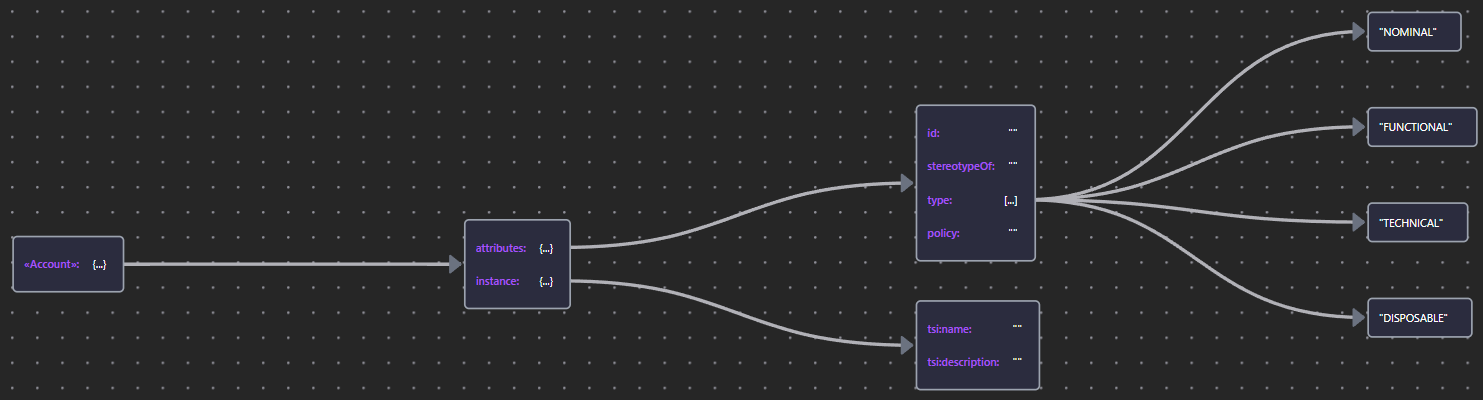

8.4.1 Account
Account is the Logical representation of a Principal from the perspective of an application or target system. A principal may hold multiple Accounts on multiple systems.
| Element | Schema File | Schema Visualization |
|---|---|---|
| «Account» | Account JSON |  |
8.4.2 Application Role
Application Role represents the roles (and their associated set of access rights) defined in the application code or configurable on the target system.
In the Security Overlay, Application Roles are fashioned from a stereotype of Application Component. They serve Accounts and can be assigned to Application functions, as shown in above Figure 60 and Figure 61.
| Element | Schema File | Schema Visualization |
|---|---|---|
| «Application Role» | App Role JSON |  |
8.4.3 Application Service
Application Services were discussed earlier in relation to SLAs and Availability.
| Element | Schema File | Schema Visualization |
|---|---|---|
| Application Service | AppSrv JSON |  |

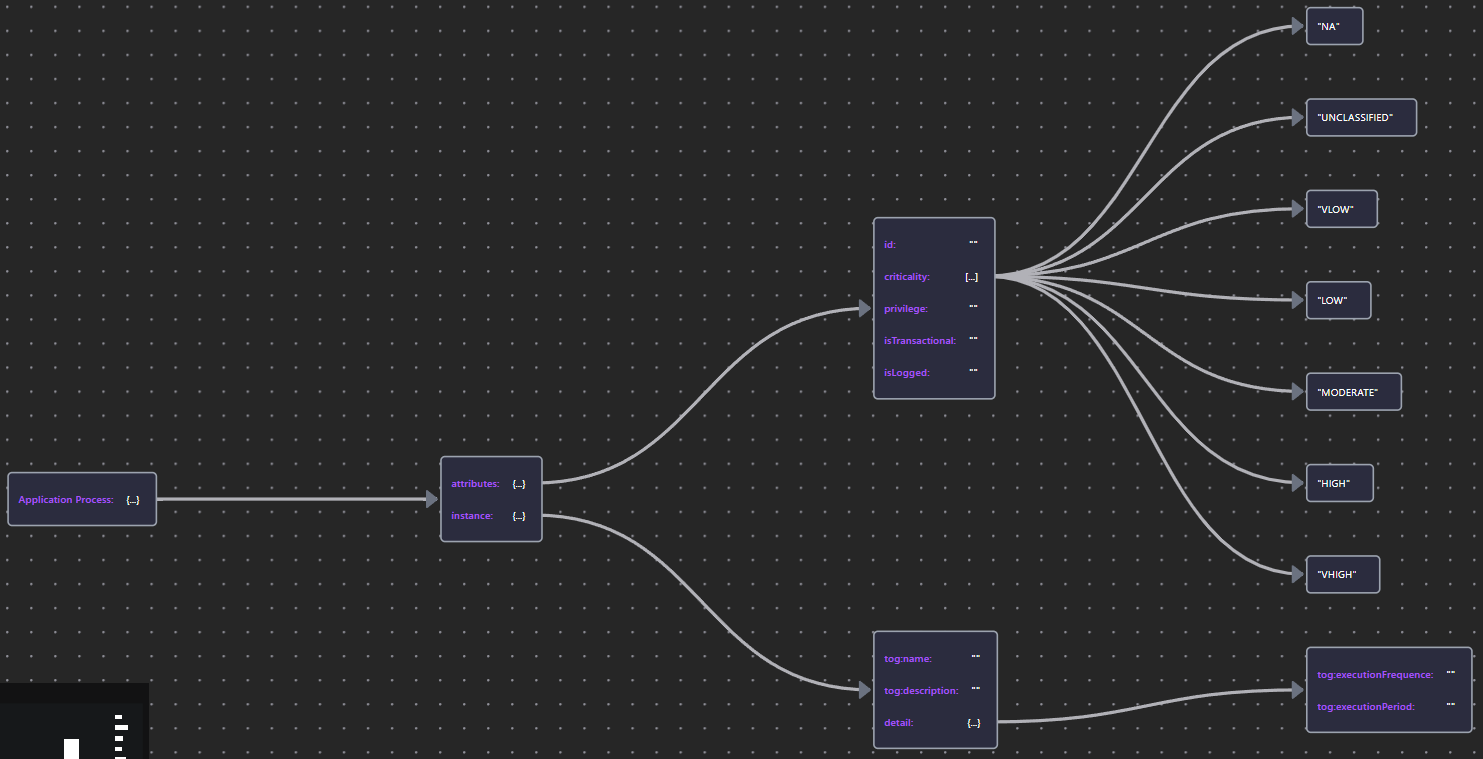

8.4.4 Application Process and Function
The key security-related property of an Application Function (and other internal behavior elements) is the authorizationContext in which the function is executed.
| Element | Schema File | Schema Visualization |
|---|---|---|
| Application Process</br>Application Function | App Proc/Func JSON |  |
8.4.5 Application Interface
Application Interfaces bind Application Services to an endpoint or channel through which they may be consumed.
The Security Overlay provides a type property to indicate interfaces intended for human or machine use.
| Element | Schema File | Schema Visualization |
|---|---|---|
| Application Interface | App Interface JSON |  |
8.5 Logical Domains
Logical domains can represent notional boundaries in the Logical layer, such as schema belonging to a particular namespace, web applications deployed under and Internet domain name, or the authorized usage (functions) covered by a Public Key Infrastructure (PKI) Signing Certificate.
Logical domains can be expressed by Grouping elements.
Pure logical space is modeled as a Grouping unadorned. A means of marking a Logical Domain as a security domain (conceptual space) is dicussed in Section 7.5: Domain Framework Model
8.6 Timing and Events
These elements can be used to model security-significant errors and exceptions thrown by application behavior; e.g., an exception encountered while validating a digital signature.
The schema is the same as that presented in Section 7.6: Security Event
8.6.1 Application Security Events
