Chapter 07 – Ensuring Semantic Integrity with Disjoint Classes

After learning to structure your Pizza ontology and applying a reasoner in Chapter 06, your ontology now possesses a dynamic semantic hierarchy and the ability to detect inconsistencies. Howerver, even with reasoning in place, logical errors can persist if classes that should not overlap are not explicitly constrained. This is where Disjoint Classes come into play. By defining disjoint classes, you as ontology engineers can enforce semantic exclusivity, preventing logically incompatible classifications and ensuring the integrity of inferred knowledge.

Disjoint classes are critical in enterprise ontologies because they formalize domain rules that may otherwise rely solely on reasoning inference. In our Pizza ontology, for example, VegetarianPizza and NonVegetarianPizza are mutually exclusive. Without declaring them disjoint, a reasoner might not flag subtle modeling errors, potentially allowing a pizza to be categorized as both. Disjointness introduces explicit semantic constraints, which enhance automated reasoning and maintain knowledge graph accuracy in the EKA framework.

7.1 Understadning Disjoint Classes

A disjoint class is an OWL concept indicating that two or more classes cannot share instances. If an individual is asserted to belong to one class, it CANNOT belong to any of the disjoint classes.

Disjoint declarations help:

In the Pizza ontology, some of the key disjoint relationships include:

Note: for Class names, we use standard Camel convention.

By defining these disjoint relationships, we provide the reasoner with rules that cannot be violated, which helps maintain the ontology’s semantic correctness as it grows in complexity.

7.2 Defining Disjoint Classes in Protégé

Creating disjoint classes in Protégé is straightforward but requires careful planning:

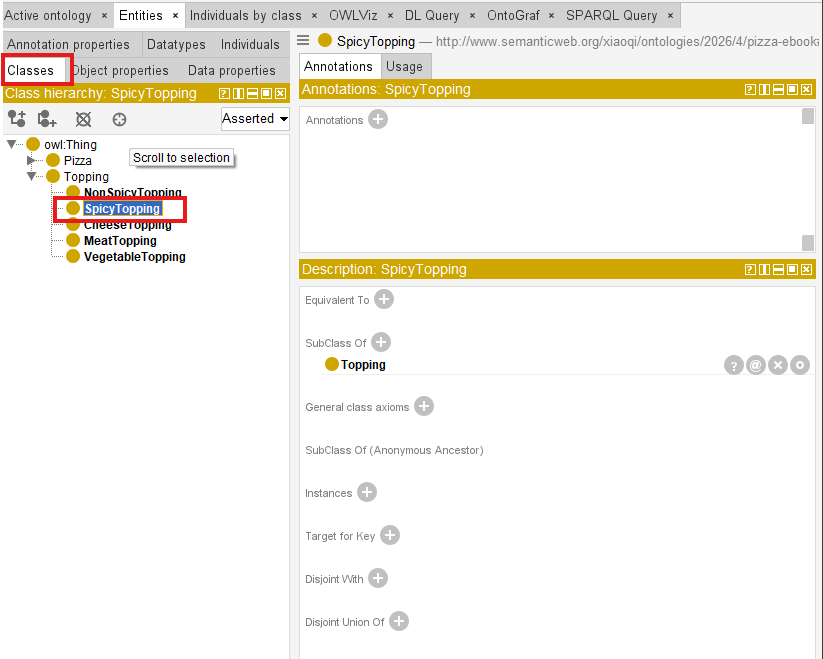

  1. Navigate to the Classes tab and select the class you wish to make disjoint with others. ch07_01_class-tab

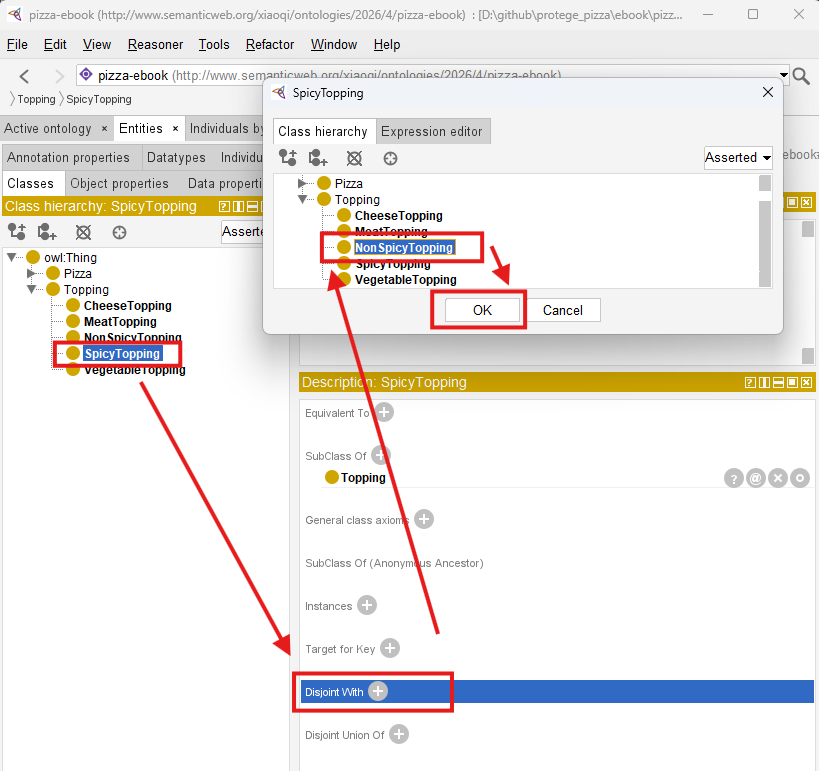

  2. Open the Disjoint With section and select the classes that should be matually exclusive. ch07_01_add-disjoint-with

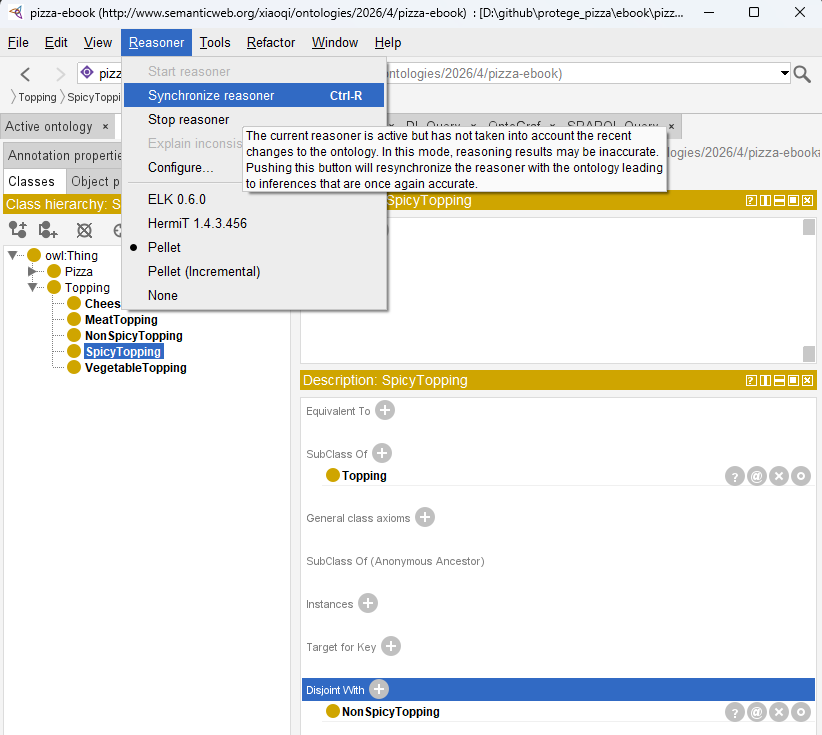

  3. Save changes and run the reasoner to check for confliect ch07_03_disjoint-sync

From above screens sample, when declaring NonSpicyTopping disjoint with SpicyTopping, the reasoner immediately flags any pizza mistakenly classified under both classes. This ensures that all individuals are consistently assigned, reducing errors in semantic inference and knowledge graph construction.

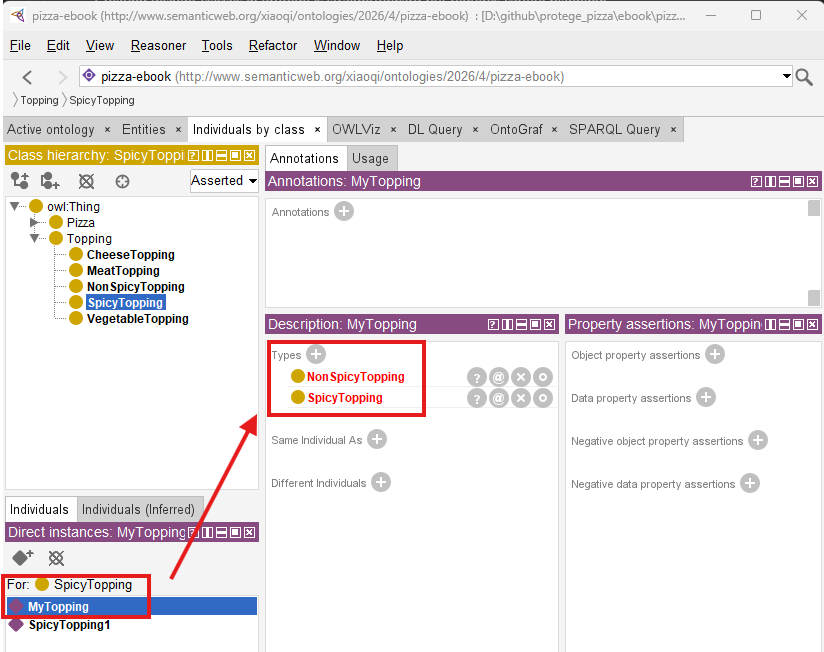

As below, simply create one topping instance called MyTopping and add it Types to both SpicyTopping and NonSpicyTopping, you may see the two types are highlighted in red after synchronizing the reasoner.

MyTopping

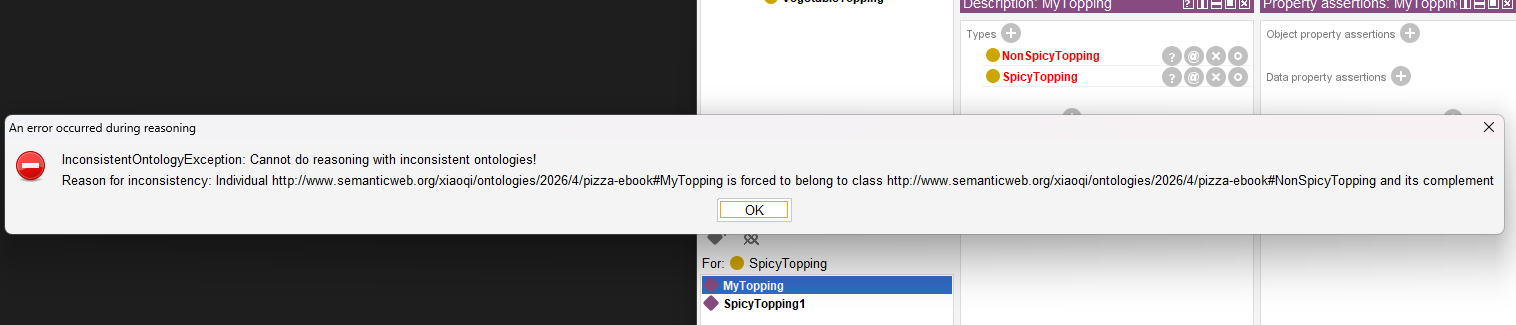

The error popup is as below:

Disjoint Error

Error message is:

InconsistentOntologyException: Cannot do reasoning with inconsistent ontologies!
Reason for inconsistency: Individual http://www.semanticweb.org/xiaoqi/ontologies/2026/4/pizza-ebbok#Mytopping is forced to belong to class http://www.semanticweb.org/xiaoqi/ontologies/2026/4/pizza-ebook#NonSpiceTopping and its complement

To make the ontology working, you can simply remove MyTopping from either SpiceTopping or NonSpicyToppying, re-synchronize reasoner, the type left will be turned from red to black. – conflict is fixed and your ontology is back to consistency.

In practice, disjoint classes often reflect real-world domain constraints. In enterprise ontology modeling, failing ot define such relationships can result in incorrect inferences that propagate throughout downstream knowledge graphs, potentially affecting AI-drien decision-making.

7.3 Linking Disjoint Classes to the EKA Framework

Within EKA, disjoint classes enforce semantic rigor between the ontology and the resulting knowledge graph.

The impact is multi-layered:

In other words, disjoint classes prevent ambiguity, preserve data integrity, and allow enterprise knowledge models to scale without introducing conflicts – essential in professional, large-scale EKA deployments.

7.4 Practical Implications and Examples

Consider the following scenarios in the Pizza ontology:

Explicitly modeling disjointness reduces semantic ambiguity and strengthens reasoning outputs. In enterprise contexts, this discipline ensures that the knowledge graph reflects true business rules rather than merely inferred relationships.

7.5 Running the Reasoner with Disjoint Classes

Once disjoint classes are defined, the next step is to re-run the reasoner in Protégé:

  1. Activate your prefered reasoner (e.g., Pallet or HermiT).
  2. Observe any newly detected inconsistencies flagged due to disjoint constraints.
  3. Examine the inferred class hierarchy to see if any individuals or subclasses conflict with the disjoint rules.
  4. Correct any errors to ensure consistency across the ontology.

By combining named classes, reasoning, and disjoint declarations, the ontology achieves a robust semantic framework capable of supporting complex knowledge representation, ready for eventual integration into knowledge graphs and AI applications.

7.6 Practical Exercise: Implementing Disjoint Classes

  1. Open the Pizza ontology with reasoned hierarchy from Chapter 06.
  2. Identify pairs of classes that should never share instances (e.g., VegetarianPizza vs. NonVegetarianPizza).
  3. Use the Disjoint With feature in Protégé to enforce mutual exclusively.
  4. Run the reasoner and confirms that conflicts are flagged appropriately.
  5. Document how these constraints improve consistency and reliability.

This exercise reinforces the importance of explicit semantic constraints in ontology design, bridging the gap between structured knowledge and executable intelligence in EKA.

7.7 Best Practices for Disjoint Classes

By following these principles, ontologies remain clean, scalable, and ready for advanced AI integration.

Chapter (07) Summary

In Chapter 07, you have:

With disjoint classes in place, the Pizza ontology is now a highly consistent and reliable semantic model, ready for export, integration, and further refinement.

Key Concepts

Concept Description
Disjoint Class A class explicitly defined to have no instances in common with other classes.
Semantic Exclusively Ensures logical separation between incompatible concepts.
Consistency Enforcement Strengthens reasoning reliabilitiy and knowledge graph integrity.
EKA Integration Disjoint classes support executable intelligence by maintaining accurate semantic relationships.

Protégé Skills Learned

Next Chapter (08) Preview

The next chapter (08) explores understanding the RDF file structure, the format in whole OWL ontologies are serialized. You will see how the Pizza ontology is represented in RDF/XML, how classes, individuals, and properties are encoded, and how this structure facilitates sharing, integration, and reasoning across systems.

Reference Demo Video

Demo video: Youtube - Chapter 07 (https://youtu.be/g7aoDsS5kSI)
